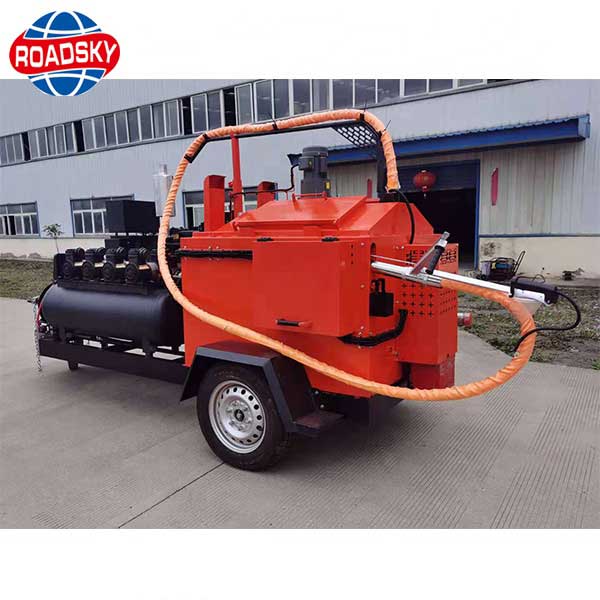

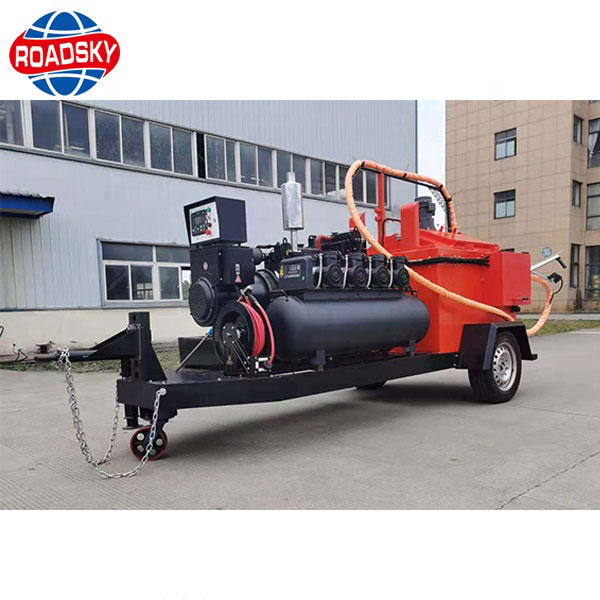

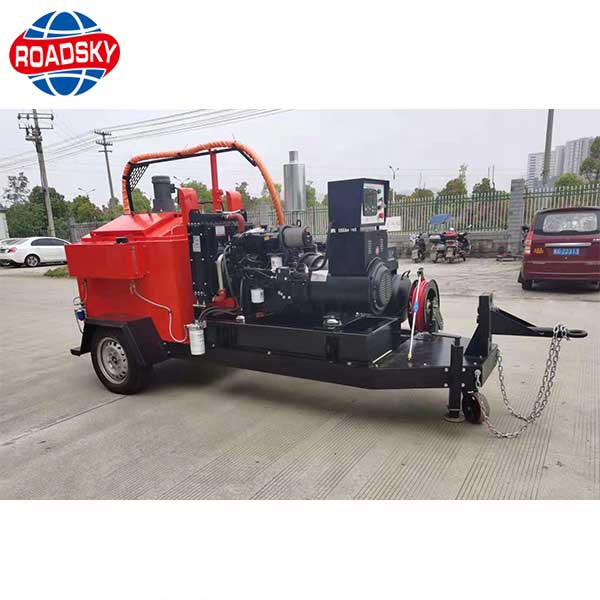

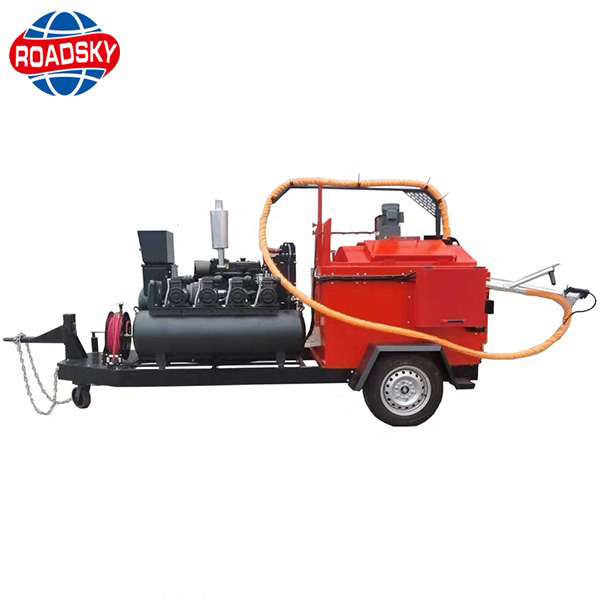

RS-500 asphalt road crack sealing machine is powered by a four-cylinder diesel engine. It is a new type of intelligent constant temperature and constant pressure seaming machine.
At the same time, the body is equipped with an air compressor, which is convenient and efficient for cleaning the dust from the cracks. The whole machine adopts an intelligent temperature controller, full digital display, high sensitivity man-machine interface control, set intelligent operation, real-time monitoring, and fault report in one. With the latest research and development of PTFE spray gun barrels, construction becomes more safe, more efficient, easier, and more stable.
Burning furnace exhaust gas emissions using spiral flue, and throttle flue gas emissions, so as to avoid high-temperature flue gas too fast into the air, so as to better control the heat loss rate, increase the combustion value, and then reduce the time of each working cycle of the burner and extend the thermal cycle. Make the combustion more sufficient, more energy saving and environmental protection, and reduce the emission of pollutants. Double anti-splash door design, faster and more uniform feeding, can be in the construction work at the same time and can be added at any time to ensure the continuity of pouring joint construction.
Specifications:
| Size | 390*174*210cm |
| Weight | 1850kg |
| Engine Power | 30KW |
| Engine type | 4 cylinder diesel engine |
| Fuel | Diesel oil |
| Diesel fuel capacity | 50L |
| Working Pressure | 6-9Mpa adjustable |
| Combustor | Italian RIELLO 445T1 |
| Way | Traction type |
| Speed per hour | 0-30 km/h |
| Wheel | Front wheel diameter 300 width 130, rear wheel diameter 750 width 175mm (steel plate type spring shock absorber) |
| Number and form of chassis shaft | 1 shaft |
| Minimum turning radius | 5.5m |
| Minimum ground clearance | 200mm |
| Lubricating oil/grease | Naki grease or lithium grease |
| Volume | 500L |
| Structure of tank | Double layer high insulation structure, insulation layer thickness of 80mm |
| Burner ignition mode | Automatic electronic ignition |
| Feeding port size | 680mmx350mm， |
| Agitator | Mixing using electric stirring, intermittent stirring, vertical shaft 360 degrees two-way stirring, stirring evenly, heating speed is fast. |
| Heating mode | The hot melting kettle with protective heat conduction oil sleeve adopts diesel burner to heat the heat conduction oil indirectly to heat the material. The heating is uniform and the material is not easy to age |
| Material of pump | 1.The feeding pump is external and hidden in the constant temperature box, synchronizing with the temperature of the rubber material in the kettle to ensure the patency of the rubber material transportation. 2.The connecting pipe between the pump and the electric heating pipe is placed in the kettle, synchronizing with the temperature of the glue material, and equipped with adjustable pressure valve to ensure the safety of personnel. |

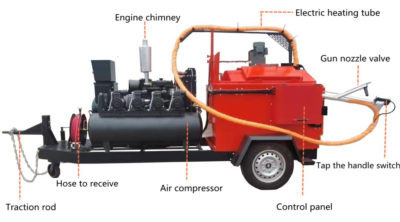

Main Structure:
Warranty Matters
- Heating hose: one year warranty for the original machine.If the heating hose is damaged by human operation and the heating is too high, the heating circuit is changed and the damage is not allowed to claim for compensation.
- Material pump: guaranteed for 6 months.Premature damage of material pump caused by improper operation and maintenance, excessive use of impurities in materials, and entry of foreign bodies shall not be claimed for compensation.
- The electrical parts of the filling sewing machine: the original machine is guaranteed for 1 year and replaced.After the purchase of parts for 1 month.If the machine circuit short circuit, open circuit, mixed electricity or artificial improper operation caused by the damage will not be claimed.
- The generator is guaranteed for one year.
- They are wearable parts and are not subject to claim.
- The damaged parts should be sent back to the manufacturer for identification before a claim can be made according to the claims regulations.
- In the above warranty period, failure, without the permission of the manufacturer, is not allowed to disassemble, inspection and maintenance, otherwise no claim.
